Description

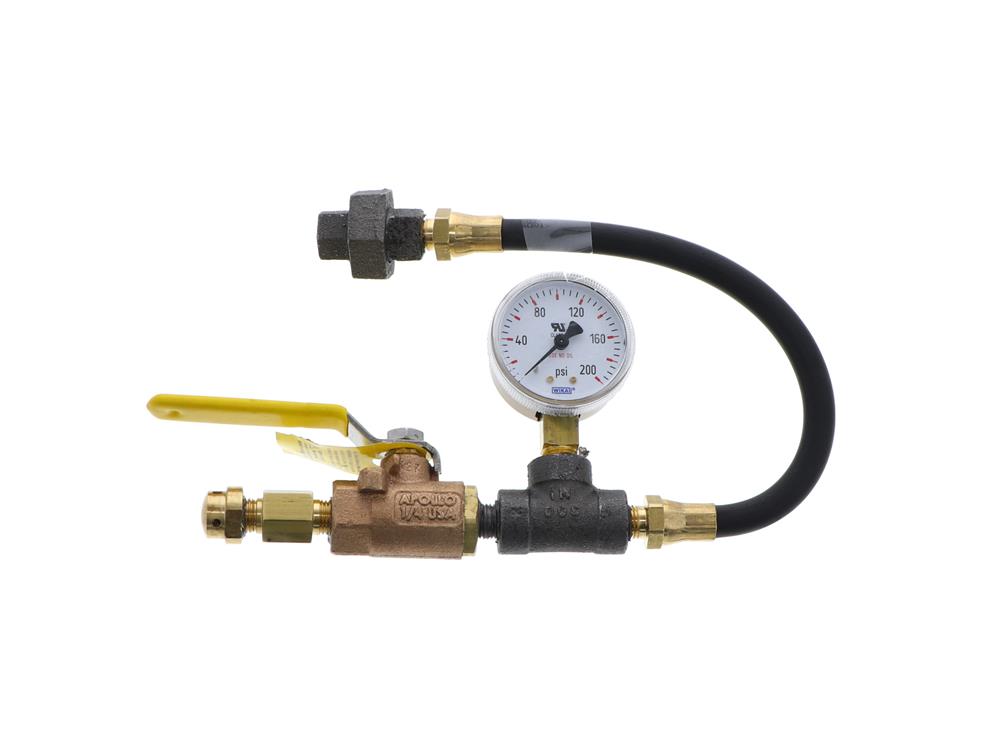

The Ansul 56972 Regulator Test Kit is an essential tool used for testing and maintaining pressure systems, specifically for Ansul R-102 and Piranha fire suppression systems.
Purpose:
* It’s designed to ensure accurate and precise measurements for regulatory compliance and safety in industrial and commercial kitchen settings.
* It’s particularly important for performing the required 12-year maintenance checks on the Ansul Automan regulator, as specified in the Ansul maintenance manual.
Contents (typical components, though exact contents can vary slightly by vendor):
While a definitive list for this specific kit is not readily available, similar Ansul regulator test kits (like the 78689 Wheeled Unit Regulator Test Kit) typically include:
* Test Kit Assembly: Often includes a pressure relief valve, low-pressure gauge, quick-connect plugs and couplers (male and female, various sizes), ball valve, flow restrictor, exhaust muffler, and necessary assembly fittings.
* Test Hose Assembly: A low-pressure hose with quick-connect couplers.
* Various Plugs and Caps: For sealing and connecting during testing.
* Tool Box: For storage and transport.
* Test Manual: Crucial for detailed instructions on how to use the kit.
How to Use:
The specific instructions for using the Ansul 056972 Regulator Test Kit would be found in the system manual that accompanies the R-102 or Piranha fire suppression system, or in the test kit’s own manual. However, the general process involves:
* Preparation: Ensuring the fire suppression system is in a safe state for testing (e.g., de-pressurized, cartridges removed). It’s often recommended to condition the test cartridge to approximately 70°F before testing.
* Connection: Connecting the test kit to the regulated release mechanism and/or regulated actuators of the system.
* Actuation: Operating a remote manual pull station (or similar method) to actuate the regulated release and supply pressure to the test kit.
* Flow Test: Opening the test kit valve fully and observing the gauge as pressure bleeds off. This allows for checking the regulator’s performance and ensuring it maintains the correct pressure (typically around 110 psi for the R-102 system).
* Re-cocking and Reassembly: After testing, the release mechanism needs to be re-cocked, and empty cartridges are removed and replaced with new ones (if part of the maintenance).
Specifications:
The Ansul R-102 system’s regulated release assembly, which the regulator test kit is designed for, typically features:
* Regulator Deadset: Factory-set at 110 psi (7.6 bar).
* External Relief: Approximately 180 psi (12.4 bar).
* Automatic Actuation: Often via a fusible link detection system.
* Manual Actuation: Via a mechanical pull station.
* Temperature Limitations: The regulated release and tank assemblies must be mounted in an area where the air temperature will not fall below 32°F (0°C) or exceed 130°F (54°C).
It’s highly recommended to consult the official Ansul documentation and training materials, or an authorized Ansul distributor, for complete and accurate instructions on using this test kit for specific Ansul fire suppression systems.
