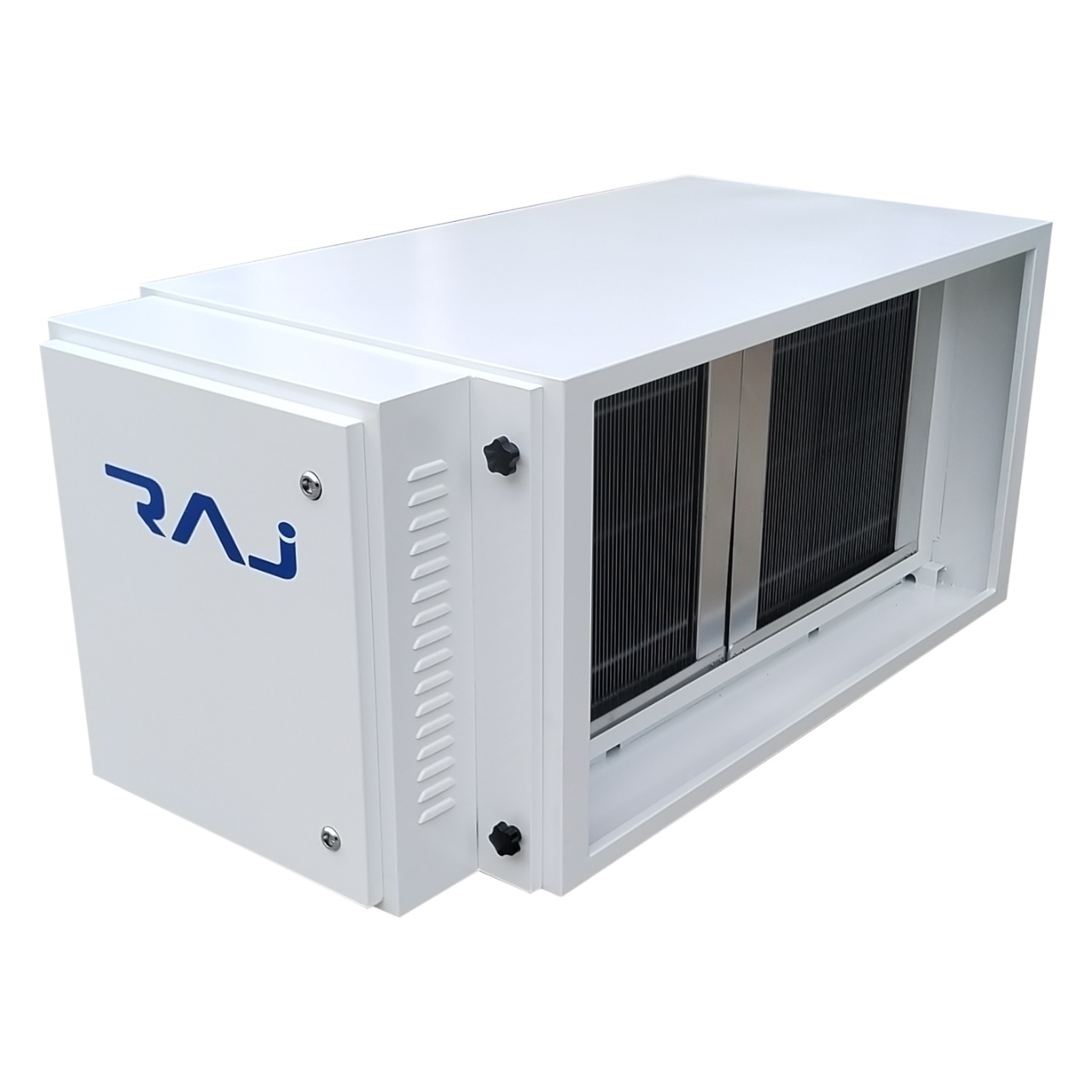

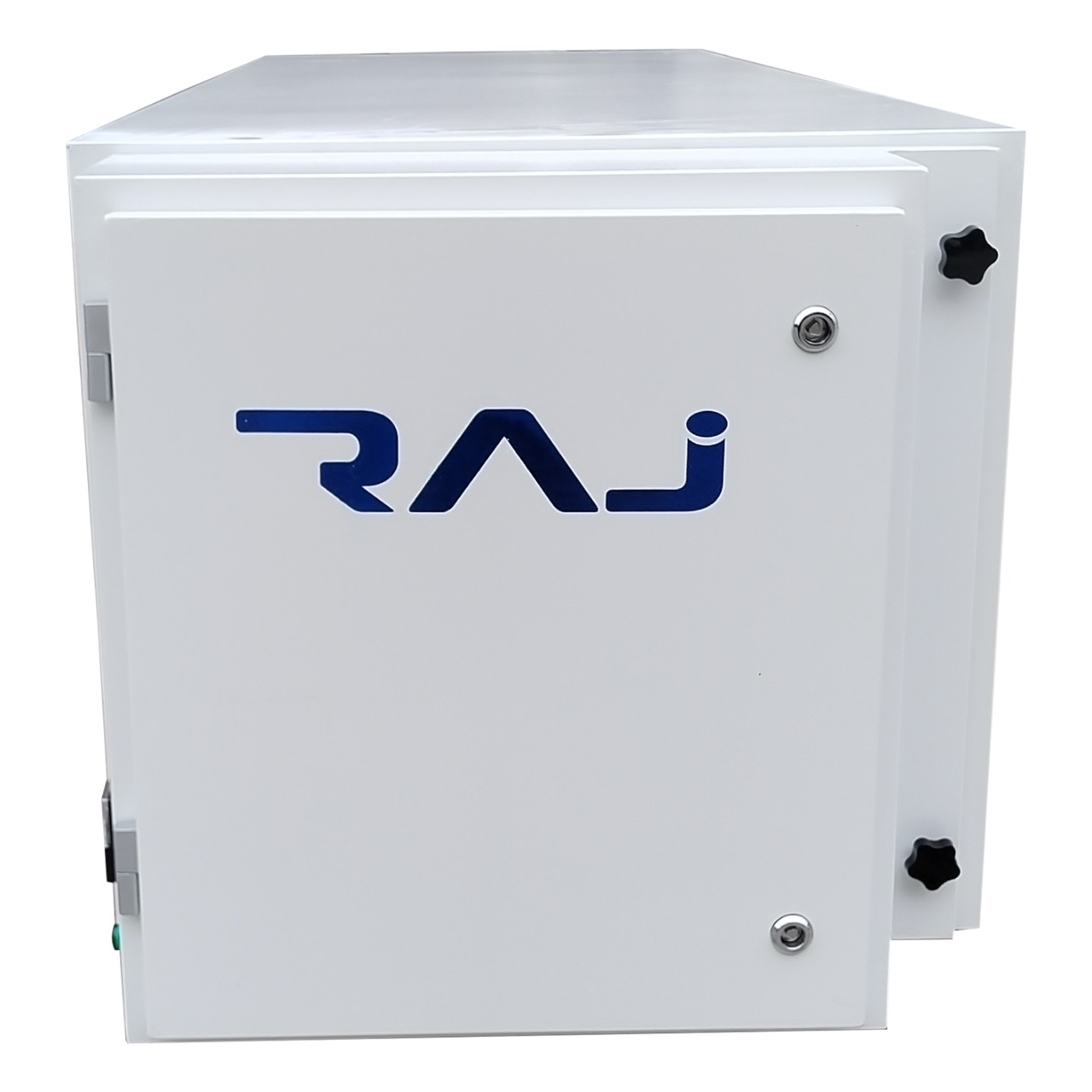

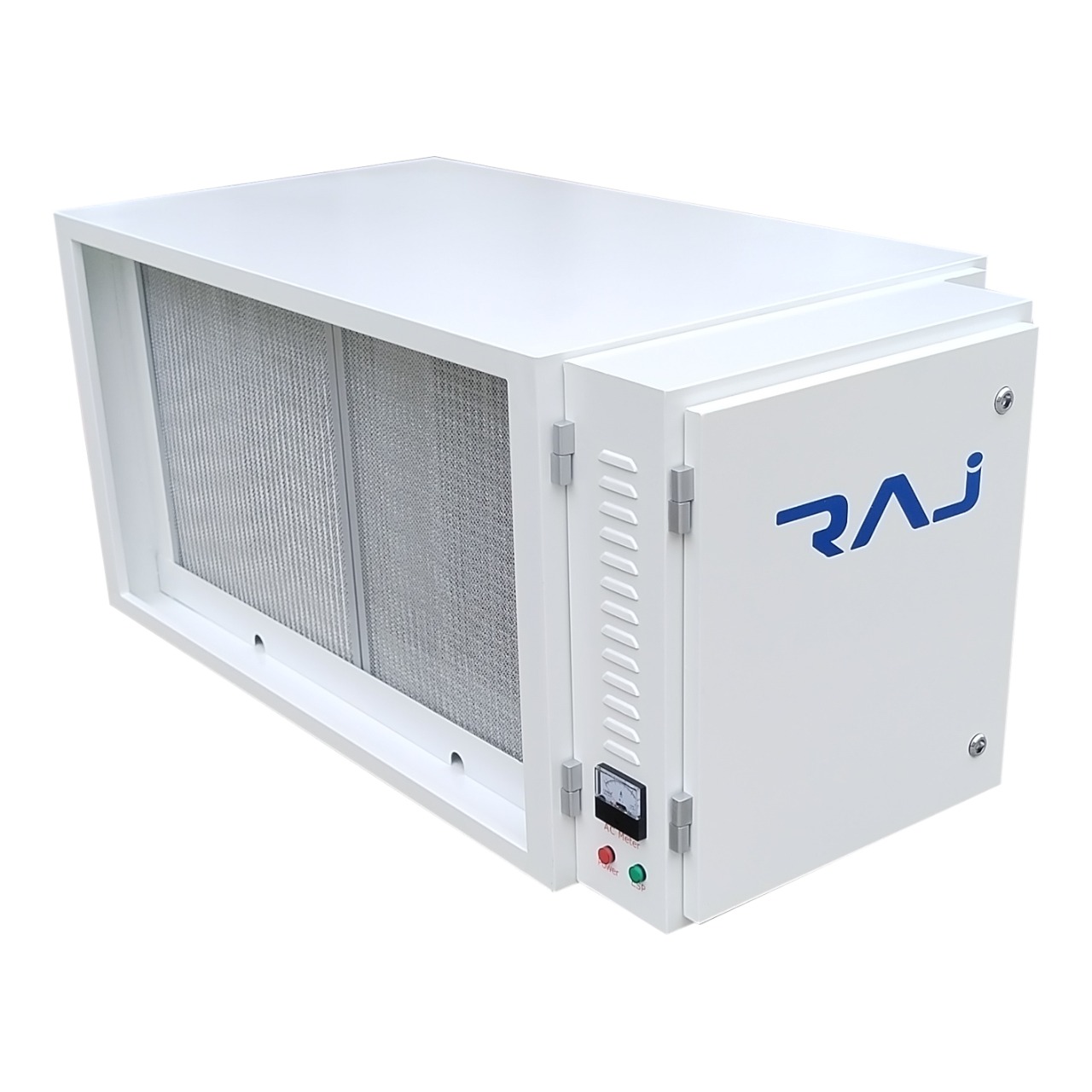

وحدة البيئة HEL-8000

12.650,0ر.س

HEL-8000

الوصف

اكولجي يونت 8000 1 اكولجي يونت 8000 2 اكولجي يونت 8000 3



SPECIFICATIONS

Air Volume (Rated-Max)CFM:4118–4706; CMH: 7000-8000; L/s:1944-2222
Dimensions/WeightL:650x W:1305xH:595mm/98KGS
CabinetGalvanized Steel, 1.2mm / 16 Gauge
Finishinghigh back epoxy power coating finish
230 VAC +/-10%, 50/60Hz, with UV :500 Watts Without UV: 200 WattsVoltage & Power
Air Flow DirectionDefault : Right to Left; Reversible : Left to Right
Pictures
Ionising VoltagesHigh Voltage: 12-14KVdc, Low Voltage: 6-7KVdc
Static Pressure39PA/ 0.2”
Power SupplyHigh Frequency solid state and self regulating design
EfficiencyDOP Test, up to 95% single pass,up to 99% double pass, calculated.ASHRAE 52.2-2012, up to 96% single pass, up to 99% doublepass, calculated.
MERV RatingsMeets MERV 15 at velocity of 2.5m/s to 3.8m/s
Pre-FilterAluminum wire mesh, 3 layer filter, size:530*19*505mm,N.W:0.55kgs Washable x 1
Electrostatic CellL: 535mm, W: 315mm, H: 505mm
No Of Plates per Cell49
No of Cells / Weight2/18Kg
14.4Sq metersTotal Collecting Area
InstallationHigh or low altitude ,Multiple Units Stack
Particle sizeFrom 0.01 microns – 10 microns
Features* Safety and Stability: Door-open power-off protection, Over-current, voltage, temperature protection, Fan cooling * Odour, smoke, oil control efficiently * BMS (Building Management System) terminals provided * Electric intensity auto-control function ensures the Kitchen ESP Collector unit maintains a high purification rate after a long time service.
